Custom FPC Cable & Flexible Printed Circuit Manufacturing
Engineering-Grade Flexible Interconnect Solutions for Medical, Industrial & Embedded Systems
Shenzhen Hiflexlink Technology Co., Ltd. provides custom FPC (Flexible Printed Circuit) and flexible interconnect manufacturing solutions for medical devices, industrial electronics, robotics, imaging systems, smart hardware, and high-density embedded applications.
From ultra-thin dynamic flex circuits to multi-layer impedance-controlled flexible assemblies, we support engineering teams requiring stable signal transmission, compact routing, repeated bending performance, and customized mechanical integration.
Custom Flexible Printed Circuits Built for High-Reliability Applications
Key Capabilities
- Single-sided / double-sided / multilayer FPC
- Dynamic flex and high-cycle bending designs
- Fine-pitch routing and impedance control
- Ultra-thin lightweight cable replacement structures
- EMI shielding and grounding integration
- Hybrid FPC + wire harness assemblies
- Medical-grade and industrial-grade materials
- Prototype to mass production support
Typical Applications
- Medical imaging systems
- MRI coil assemblies
- Ultrasound probe systems
- Wearable electronics
- Robotics and automation
- Automotive displays and cameras
- Industrial control systems
- Embedded computing devices
- Consumer smart hardware
- Portable diagnostic equipment
Why Engineering Teams Choose Custom FPC Solutions
1. Space Optimization
FPC structures can replace bulky wire harnesses and rigid board-to-board connections.
Advantages include:
- Compact folded routing
- Thin-profile assemblies
- Improved airflow management
- Better internal packaging efficiency
- Reduced product thickness
This is especially important for:
- Portable electronics
- Medical imaging devices
- Embedded control systems
- Wearable products
- Compact robotic assemblies
2. Dynamic Flex Reliability
Unlike standard PCB interconnects, dynamic-flex FPCs are specifically designed for repeated movement and bending cycles.
- Rolled annealed copper
- Neutral bend layer design
- Reinforcement structures
- Controlled bend radius
- Stress relief geometry
- Coverlay optimization
- Hinged display systems
- Moving sensor assemblies
- Robotics
- Medical probes
- Motion-control systems
3. Signal Integrity & High-Speed Transmission
- Differential pair routing
- Controlled impedance
- USB high-speed transmission
- LVDS signaling
- Camera module interfaces
- RF transmission structures
- Trace geometry
- Dielectric thickness
- Shielding layers
- Ground reference structures
- Crosstalk reduction
- Return path optimization
4. Reduced Assembly Complexity
FPC assemblies can consolidate multiple cables, connectors, and rigid interfaces into a single integrated structure.
Benefits include:
- Faster assembly
- Lower labor cost
- Reduced connector failure risk
- Simplified routing
- Lower system weight
- Better reliability consistency

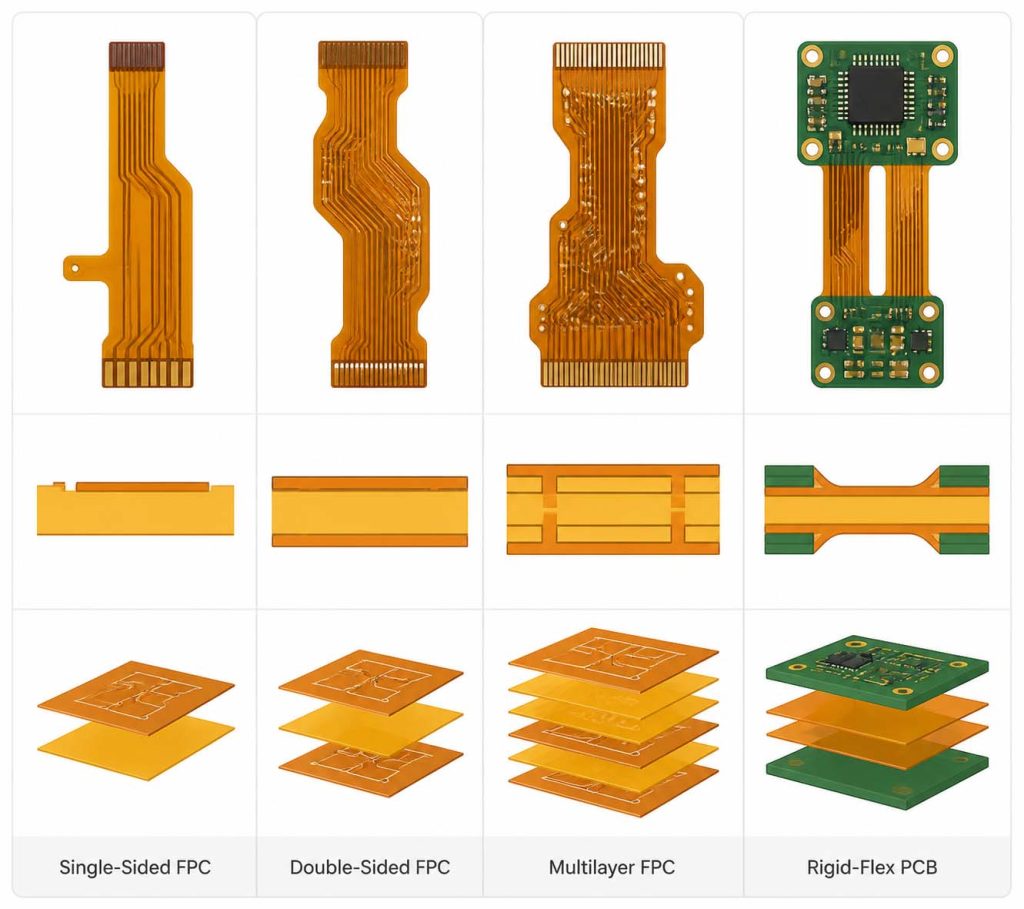

Our FPC Manufacturing Capabilities
Selecting the appropriate FPC structure is critical for achieving optimal electrical performance, mechanical reliability, and manufacturing efficiency.
Different applications may require different combinations of flexibility, layer count, signal integrity, shielding capability, and connector integration.
Our engineering team supports a wide range of flexible circuit structures designed for medical electronics, industrial automation, embedded systems, robotics, and compact electronic assemblies.
Suitable for:
Simple signal transmission
LED systems
Consumer electronics
Low-density control circuits
Suitable for:
Medium-density routing
Embedded systems
Industrial electronics
Compact medical equipment
Suitable for:
High-speed interfaces
Dense signal routing
Advanced embedded systems
Medical imaging equipment
Hybrid structures combining:
Rigid PCB sections
Flexible interconnect areas
Connector integration
Complex folded assemblies

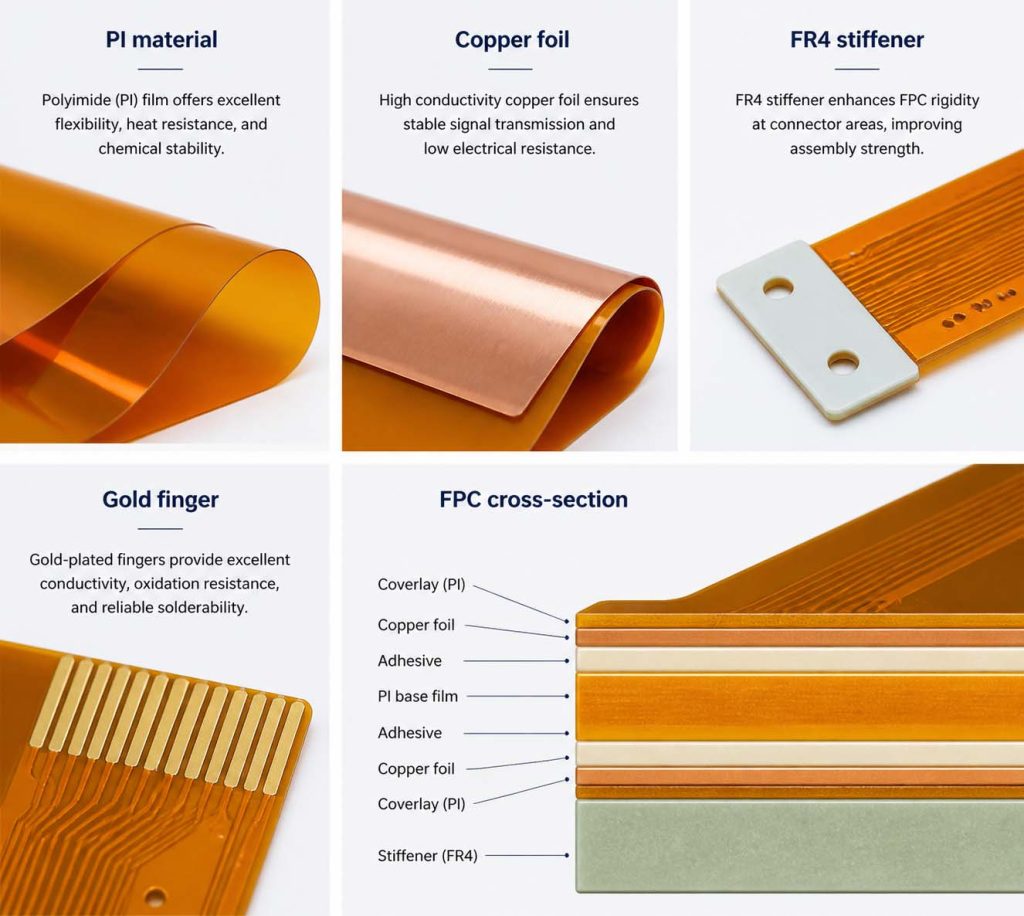

Materials & Engineering Options
The performance of an FPC is heavily influenced by its material system and structural configuration.
Factors such as repeated bending cycles, operating temperature, signal integrity, EMI performance, and mechanical reinforcement requirements must all be considered during material selection and stack-up design.
To support diverse industrial and medical applications, we offer a wide range of engineering-oriented material and reinforcement options for custom flexible circuit manufacturing.
Base Materials
Preferred for:
- High-temperature environments
- Dynamic flex applications
- Industrial systems
- Medical electronics
Features:
- Excellent heat resistance
- Strong mechanical stability
- Superior bending performance
Suitable for:
- Cost-sensitive products
- Consumer electronics
- Static flex structures
Copper Types
Recommended for:
Dynamic flexing
Repeated bending
Motion systems
Suitable for:
Static applications
Cost-optimized products
Reinforcement Options
- FR4 stiffener
- Stainless steel stiffener
- Polyimide stiffener
- Aluminum reinforcement
- Local support structures
- Connector reinforcement
- Insertion durability
- Assembly support
- Mechanical stabilization
Surface Finishes
Available finishes include:
- ENIG
- Immersion Tin
- OSP
- Gold plating
- Selective plating
Engineering Design Considerations
Engineering design optimization is one of the most critical factors affecting the reliability and service life of flexible printed circuits.
Improper mechanical layout, excessive stress concentration, or inadequate bend management may lead to conductor fatigue, delamination, impedance instability, or premature failure during operation.
Our engineering approach focuses on balancing electrical performance, mechanical durability, manufacturability, and long-term flex reliability for demanding application environments

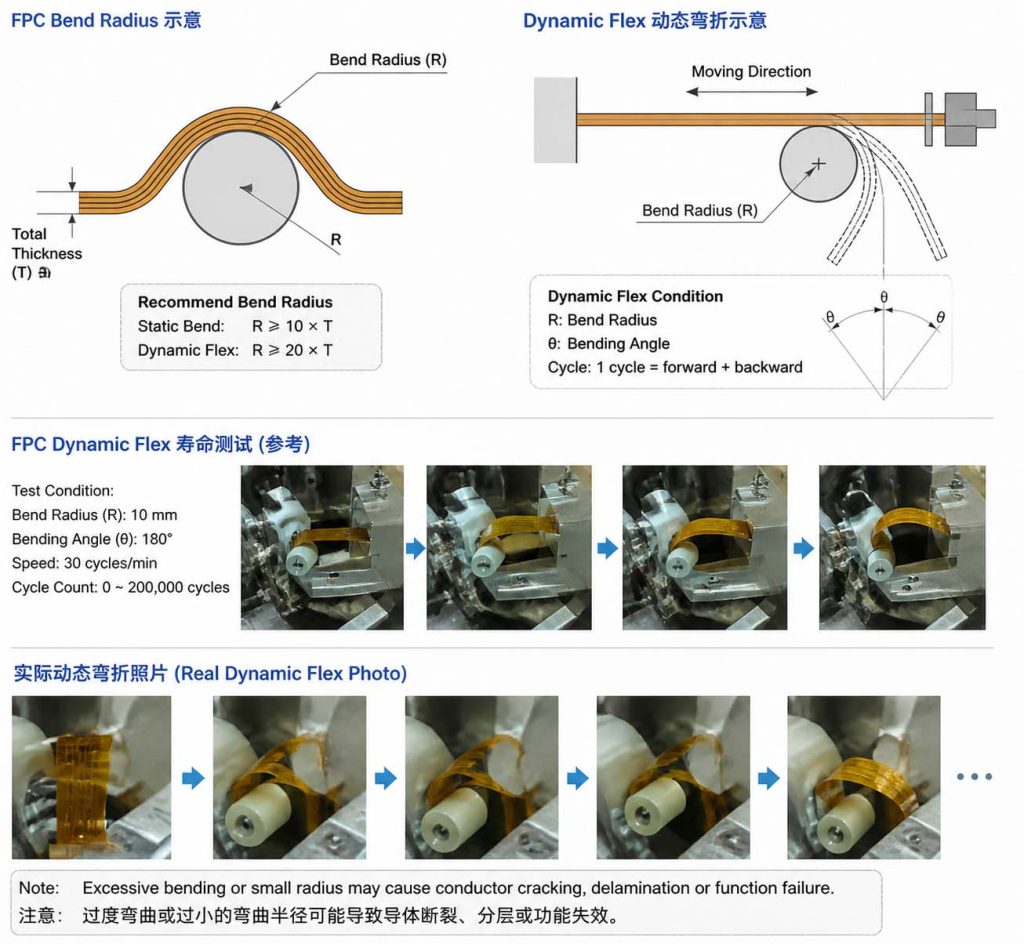

Bend Radius Design
Proper bend radius is critical for long-term reliability.
Engineering recommendations depend on:
- Copper thickness
- Layer count
- Dynamic vs static bending
- Material type
- Trace distribution
Improper bend radius may cause:
- Copper cracking
- Delamination
- Signal failure
- Mechanical fatigue
Dynamic Flex Optimization
For moving applications, design optimization may include:
- Curved trace routing
- Avoiding sharp copper corners
- Balanced copper distribution
- Stress-relief transition areas
- Controlled reinforcement placement

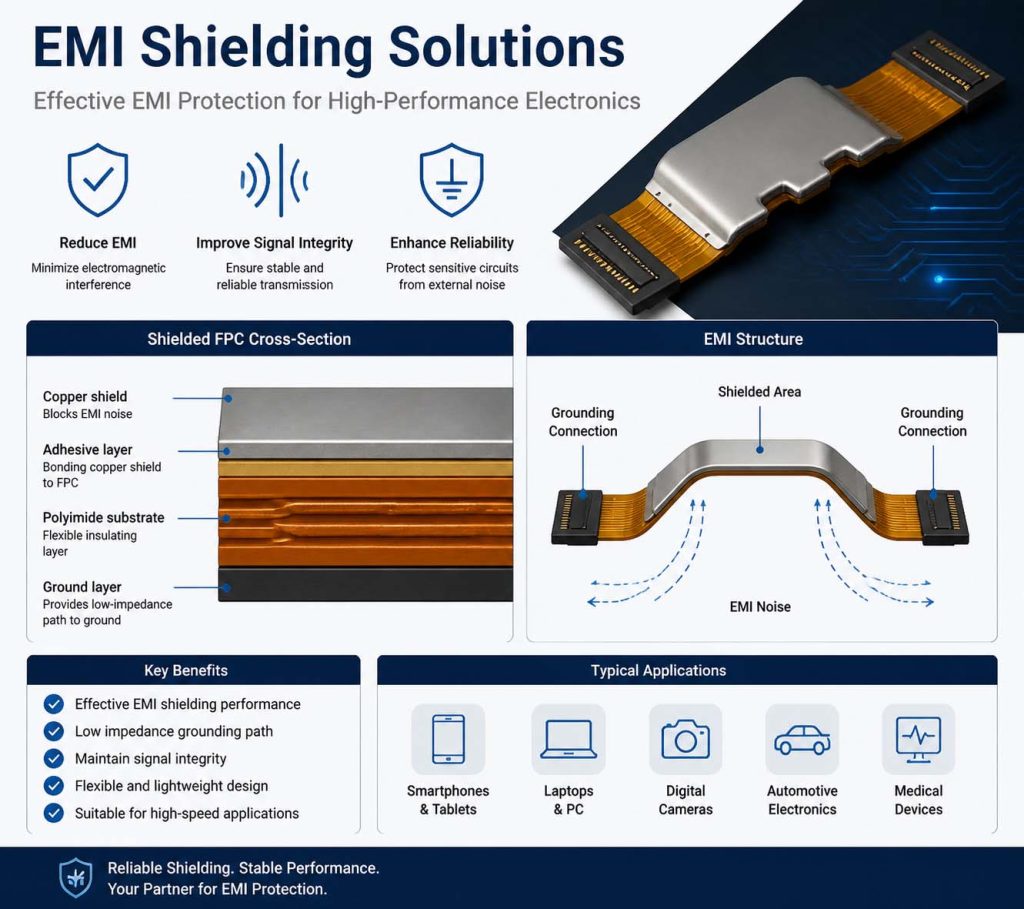

EMI Shielding Solutions
Shielding structures may include:
- Copper shielding layers
- Conductive films
- Ground mesh structures
- Aluminum shielding tape
- Hybrid shielded assemblies
Used in:
- Medical electronics
- RF systems
- Imaging systems
- Industrial automation

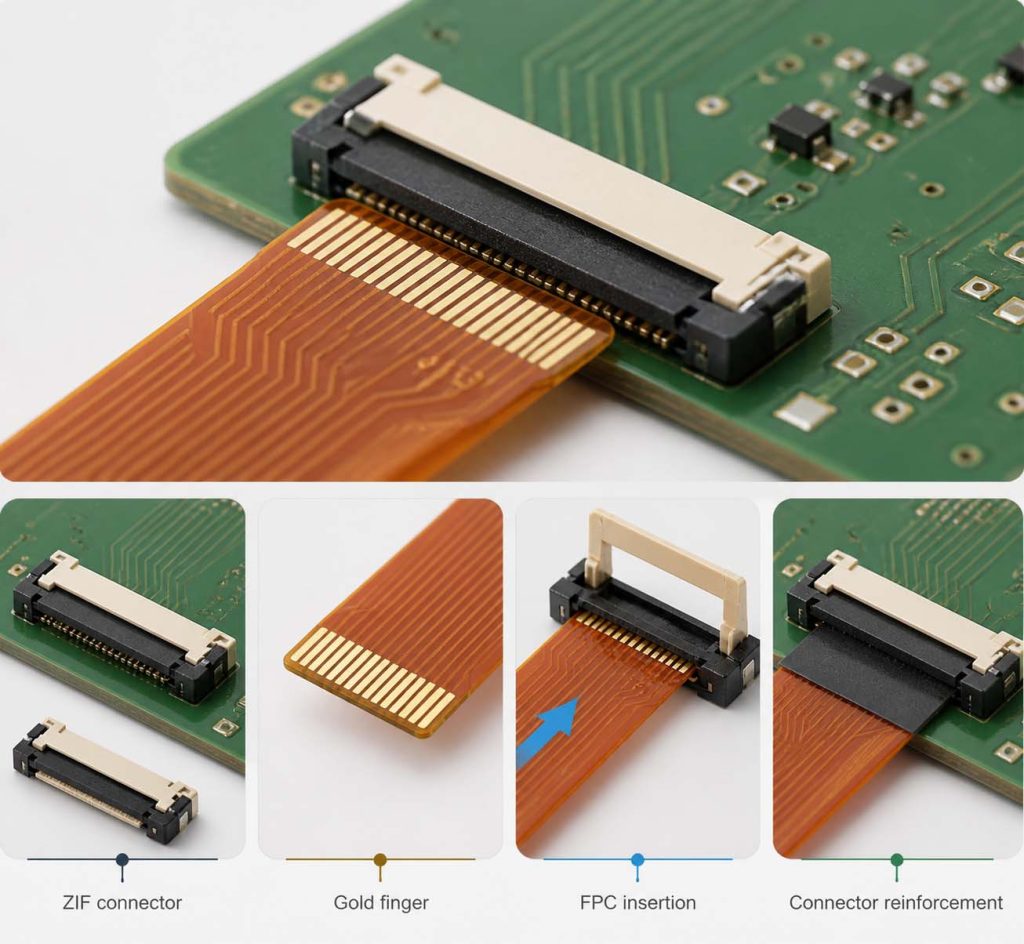

Connector Integration
Supported connector structures include:
- ZIF connectors
- BTB connectors
- Solder pads
- Custom contact structures
- Hybrid wire-to-FPC transitions
Typical Industries We Support
Medical Electronics
FPC structures are widely used in:
- MRI coil systems
- Ultrasound devices
- Patient monitoring systems
- Portable diagnostics
- Wearable medical devices
Engineering priorities include:
- Reliability
- Miniaturization
- Biocompatible material considerations
- Stable signal transmission
- Repeated cleaning resistance
Industrial Automation
Applications include:
- Motion-control systems
- Industrial cameras
- Robotics
- Embedded controllers
- Sensor modules
Requirements often include:
- Vibration resistance
- Flex durability
- EMI performance
- Long service life
Consumer Electronics
Used in:
- Smart wearables
- Foldable devices
- Camera modules
- Portable electronics
- Compact display systems
Automotive Electronics
Applications include:
- Dashboard systems
- Display modules
- Camera systems
- Sensor integration
- Lighting systems
Custom FPC Cable Assembly Solutions
In addition to bare FPC manufacturing, we also support:
- FPC cable assemblies
- Hybrid FPC + wire harness systems
- Connector termination
- Shielded flexible assemblies
- Embedded signal interconnects
- Overmold integration
This allows customers to reduce:
- Supplier management complexity
- Assembly steps
- Interconnect compatibility risks
- System integration time
Prototype to Mass Production Support
Engineering Prototype Support
We support:
- Rapid prototyping
- Design verification
- Mechanical validation
- Flex-life testing
- Sample optimization
Engineering collaboration may include:
- DFM review
- Stack-up recommendations
- Material suggestions
- Flex optimization
- Connector integration advice
Production Manufacturing
Capabilities include:
- Small-batch production
- Medium-volume manufacturing
- High-volume production
- Customized packaging
- Traceability support
- Quality inspection processes
Quality Control & Reliability Focus
Inspection Processes
Quality procedures may include:
- AOI inspection
- Electrical continuity testing
- Dimensional inspection
- Impedance verification
- Flex reliability testing
- Connector inspection
Reliability Engineering
Depending on application requirements, testing may include:
- Bend-cycle testing
- Environmental testing
- Thermal cycling
- High/low temperature evaluation
- Signal integrity verification
Why Work with Shenzhen Hiflexlink Technology Co., Ltd.
Engineering-Focused Manufacturing Support
We understand that FPC projects often involve:
- Mechanical constraints
- Signal integrity challenges
- Reliability concerns
- Connector compatibility
- Dynamic movement requirements
Our goal is to provide engineering-oriented manufacturing support rather than only standard catalog products.
Flexible Customization
We support customization for:
- Thickness
- Layer structure
- Shielding design
- Connector layout
- Stiffener structure
- Cable transitions
- Surface finish
- Mechanical shape
Multi-Industry Experience
Our project experience includes:
- Medical electronics
- RF systems
- Imaging systems
- Industrial control
- Embedded devices
- Flexible cable integration
FAQ
What is the difference between FPC and rigid PCB?
FPC uses flexible substrate materials and can bend or fold during installation and operation, while rigid PCB structures remain mechanically fixed.
Can FPC replace traditional wire harnesses?
In many compact electronic systems, FPC can replace multiple discrete wires and connectors, reducing assembly complexity and improving space efficiency.
What materials are commonly used for FPC?
Common materials include:
Polyimide (PI)
PET
Rolled annealed copper
Electro-deposited copper
FR4 stiffeners
Do you support custom connector integration?
Yes. Connector integration support may include:
ZIF
BTB
Solder pads
Hybrid cable transitions
Custom layouts
Can you support dynamic flex applications?
Yes. Dynamic flex optimization may include:
RA copper
Stress-relief structures
Controlled bend radius
Flex-life optimization
Need a Custom FPC Solution?
Discuss your application requirements with Shenzhen Hiflexlink Technology Co., Ltd.
We support:
- Engineering evaluation
- Prototype development
- Flexible material selection
- Connector integration
- Dynamic flex optimization
- Production manufacturing
Contact Us Today
- Send drawings or Gerber files
- Discuss custom stack-up requirements
- Request engineering support
- Start prototype evaluation
Shenzhen Hiflexlink Technology Co., Ltd. focuses on engineering-oriented flexible interconnect manufacturing solutions including FPC, custom cable assemblies, RF cable systems, medical interconnects, and high-reliability electronic cable products.
